BENDPAK HD-973PX

$23,495.00
In stock: 2 available
Product Details
Brand: BENDPAK

9,000 and 7,000 Lb. Capacity / Tri-Level Parking Lift / Extended / High Lift

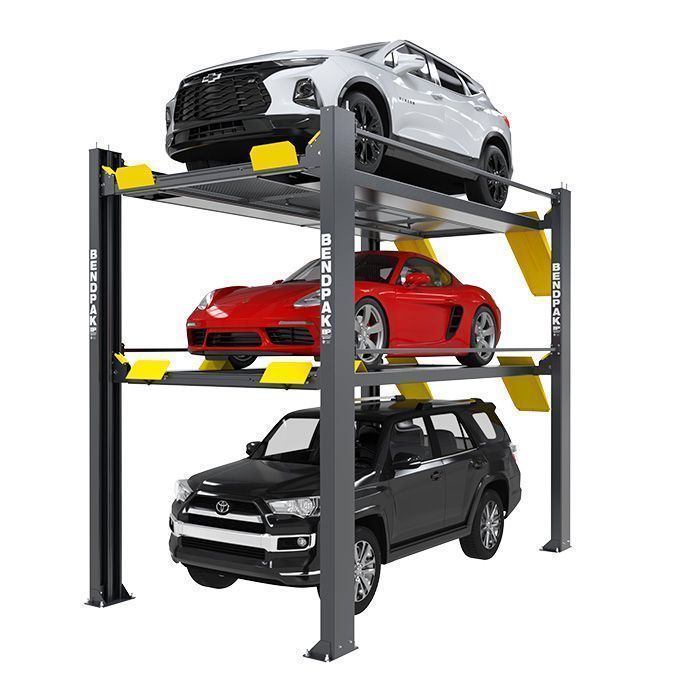

Supersize your parking capacity with this revolutionary tri-level parking lift from BendPak! This unique four-post parking lift design parks up to three vehicles in one space, instantly tripling your parking capacity. With an extended length and taller rise compared to the HD-973P, the HD-973PX has even more room for your longest and boxiest vehicles.

The longer, higher triple decker


Style

Style:
Multi-Level Parking Lift

Top Platform

Lifting Capacity*
7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle
3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle
3,500 lbs. (1,588 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
252.25" (6,409 mm)
C - Height of Columns
169.75" (4,312 mm)
D - Drive-thru Clearance
86.5" (2,197 mm)
E - Maximum Rise
151.5" (3,849 mm)
F - Maximum Lifting Height
156" (3,988 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1,041 mm)
J - Runway Length
208.5" (5,296 mm)
Min. Wheelbase @ rated Capacity1
140" (3,556 mm)
Min. Wheelbase @ 75% Capacity1
120" (3,084 mm)
Min. Wheelbase @ 50% Capacity1
100" (2,540 mm)
Min. Wheelbase @ 25% Capacity1
80" (2,032 mm)
Locking Positions
34
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
90 seconds
Motor
220 VAC / 60 Hz / 1 Ph

Bottom Platform

Lifting Capacity*
9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle
4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle
4,500 lbs. (2,041 kg)
A - Overall Width
110.5" (2,807 mm)
B - Overall Length
252.25" (6,409 mm)
C - Height of Columns
169.75" (4,312 mm)
D - Drive-thru Clearance
86.5" (2,197 mm)
E - Maximum Rise
82" (2,083 mm)
F - Maximum Lifting Height
84.5" (2,210 mm)
G - Distance Between Columns
100" (2,546 mm)
H - Runway Width
19" (482 mm)
I - Width Between Runways
35" (889 mm) or 41" (1,041 mm)
J - Runway Length
208.5" (5,296 mm)
Min. Wheelbase @ rated Capacity1
135" (3,429 mm)
Min. Wheelbase @ 75% Capacity1
115" (2,921 mm)
Min. Wheelbase @ 50% Capacity1
95" (2,413 mm)
Min. Wheelbase @ 25% Capacity1
75" (1,905 mm)
Locking Positions
16
Locking Spacing
Every 4" (102 mm)
Lifting Time to Max. Rise
50 seconds
Motor
220 VAC / 60 Hz / 1 Ph
